    High Intension Zro2 Ceramic Ball

    Ask Lasest Price
    Brand Name : OEM
    Certification : ISO 16949
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000000 Piece/ per Month
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

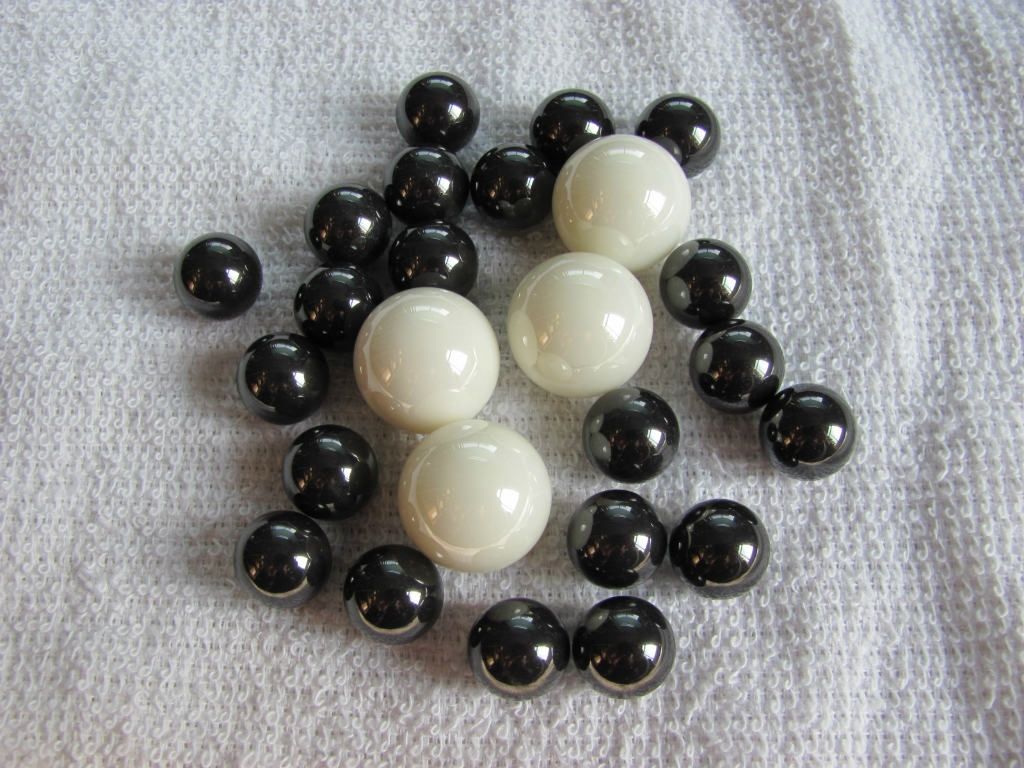

    High Intension Zro2 Ceramic Ball

    High Intension Zro2 Ceramic Ball


    ZrO2 Ceramic Ball at routine temperature has high intension and tenacity, good wearing resistance, high temperature resistance, anti-canker, high rigidity, no magnetism, isolation for electricity. At 600℃, the intension and rigidity almost could not be changed, whose density is 6.00g/cm3, ZrO2 Ceramic Ball’s thermal expansion rate is close to metal expansion rate, and could be used in the joint with metal.

    ZrO2 Ceramic Ball at routine temperature has high intension and tenacity, good wearing resistance, high temperature resistance, anti-canker, high rigidity, no magnetism, isolation for electricity. At 600℃, the intension and rigidity almost could not be changed, whose density is 6.00g/cm3, ZrO2 Ceramic Ball’s thermal expansion rate is close to metal expansion rate, and could be used in the joint wi


    Staple Material and Manufacturing Presision
     Ceramic BallsPlastic ballsGlass BallsStainless Balls
    meterialZrO2,Si3N4,SiC,Al2O3POM,PE,PP,PA,UPE,PEEKGLASS440C,304,316,316L
    gradG5-G200G100-G1000G100-G1000G10-G200

    Staple size of the balls
    Size(inch)Size(mm) Size(inch)Size(mm)
     1.5 1/16"1.588
     2 3/322.381
    1/8"3.175 5/32"3.969
    3/16"4.763 7/32"5.556
    1/4"6.35 17/64"6.747
     7 9/32"7.144
    5/16"7.938 11/32"8.731
    3/8"9.525 13/32"10.319
    7/16"11.112 29/64"11.509
    15/32"11.906  12
    31/64"12.303 1/2"12.7
    17/32"13.494  14
    9/16"14.288 19/32"15.081
    5/8"15.875 21/32"16.669
    11/16"17.463 23/32"18.256
    3/4"19.05 25/32"19.844
     20 13/16"20.638
    7/8"22.225 15/16"23.812
    1"25.4 1-1/16"26.988
    1-1/8"28.575 1-3/16"30.163
    1-1/4"31.75 1-3/8"34.925
     35 1-1/2"38.1
    1-5/8"41.275 1-11/16"42.863
    1-7/8"47.625 2"50.8

    Tolerance and surface roughness of the balls
    GradeVariation of ball diameterDeviation from ( △ Sph)Surface roughness spherical from(Ra)
    not over μ m
    30.080.080.012
    50.130.130.02
    100.250.250.025
    160.40.40.032
    200.50.50.04
    280.70.70.05
    40110.08
    601.51.50.1
    1002.52.50.125
    200550.2
